Product ID: 2/4/5RB30A-A/C,2/4/5RB30GB-A/C

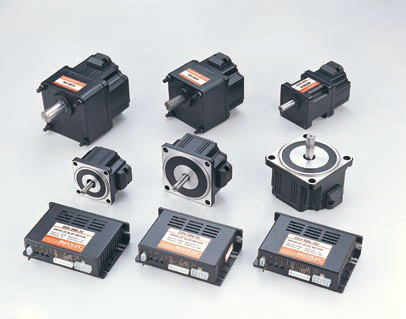

High Voltage Brushless DC Motor, High Voltage Brushless DC Gear Motor, Drive
This series of Brushless DC Motor features:
- Power Source: AC to DC
- There are many types and drives with output power 30W, 50W & 100W for selection.
- Speed control range: 150 ~ 3000RPM, No load speed: 3000RPM, Rating speed: 2500RPM.
- Carbon Brushless, low noise, high efficiency, long life & long-time operation.
- Compact in size, height-torque at low speed.
- Reverse instantly (CW & CCW) without sparks, and speed variable.
- Can be connected with Gearbox to lower the speed and enhance torque.
Specifications:
- 2RB30A-A/C
- BLDC MOTOR
- 30W, Single Phase, 110V/220V, 3000RPM, Variable Speed Range: 150~3000RPM, Cylinder Shaft
- 2RB30GB-A/C
- BLDC MOTOR
- 30W, Single Phase, 110V/220V, 3000RPM, Variable Speed Range: 150~3000RPM, Gear Shaft
- 4RB50A-A/C
- BLDC MOTOR
- 50W, Single Phase, 110V/220V, 3000RPM, Variable Speed Range: 150~3000RPM, Cylinder Shaft
- 4RB50GB-A/C
- BLDC MOTOR
- 50W, Single Phase, 110V/220V, 3000RPM, Variable Speed Range: 150~3000RPM, Gear Shaft
- 5RB100A-A/C
- BLDC MOTOR
- 100W, Single Phase, 110V/220V, 3000RPM, Variable Speed Range: 150~3000RPM, Cylinder Shaft
- 5RB100GB-A/C
- BLDC MOTOR
- 100W, Single Phase, 110V/220V, 3000RPM, Variable Speed Range: 150~3000RPM, Gear Shaft
- ADV900-30-A/C
- BLDC Motor Drive
- 30W, Single Phase, 110V/220V.
- 1. Run/Stop. 2. Brake. 3. CW/CCW. 4. Control the Speed on both internal & external. 5. Output Signal of Speed. 6. Output Signal of Alarm. 7. Communication interface.
- ADV900-50-A/C
- BLDC Motor Drive
- 50W, Single Phase, 110V/220V.
- 1. Run/Stop. 2. Brake. 3. CW/CCW. 4. Control the Speed on both internal & external. 5. Output Signal of Speed. 6. Output Signal of Alarm. 7. Communication interface.
- ADV900-100-A/C
- BLDC Motor Drive
- 100W, Single Phase, 110V/220V.
- 1. Run/Stop. 2. Brake. 3. CW/CCW. 4. Control the Speed on both internal & external. 5. Output Signal of Speed. 6. Output Signal of Alarm. 7. Communication interface.
Features:
- Brushless, long life, low noise.
- High efficiency & compact in size.
- Smooth-running at both high & low speed.
- Low-fluctuation for speed.
- Wide speed range.
- High-torque at low R.P.M.
- Highly safe, without sparks.
- Cab be connected with Gearbox.
- Function:
- Power source: AC to DC.
- No Load Speed: 3000RPM (max.)
- Soft-start & Soft-down.
- Available built-in electronic brake.
- Electromagnetic brake for immediate reversal of motor.
- Speed display & driver available with special order.
|


BLDC Motors & Drives
ADV900 Series Drive
|
| Model |
Rated Voltage |
Output Power |
Speed Range |
Rotation |
Flange Dimension |
Shaft Type |
Fit Gear Head |
Ratio |
| 2RB30A-A |
1PH, 110VAC |
30W |
150~3000RPM |
C.W. & C.C.W. |
60mm x 60mm |
Cylinder Shaft |
None |
None |
| 2RB30A-C |
1PH, 220VAC |
30W |
150~3000RPM |
C.W. & C.C.W. |
60mm x 60mm |
Cylinder Shaft |
None |
None |
| 2RB30GB-A |
1PH, 110VAC |
30W |
150~3000RPM |
C.W. & C.C.W. |
60mm x 60mm |
Gear Shaft |
2GB |
5:1~200:1 |
| 2RB30GB-C |
1PH, 220VAC |
30W |
150~3000RPM |
C.W. & C.C.W. |
60mm x 60mm |
Gear Shaft |
2GB |
5:1~200:1 |
| 4RB50A-A |
1PH, 110VAC |
50W |
150~3000RPM |
C.W. & C.C.W. |
80mm x 80mm |
Cylinder Shaft |
Worm Gearbox |
5:1~60:1 |
| 4RB50A-C |
1PH, 220VAC |
50W |
150~3000RPM |
C.W. & C.C.W. |
80mm x 80mm |
Cylinder Shaft |
Worm Gearbox |
5:1~60:1 |
| 4RB50GB-A |
1PH, 110VAC |
50W |
150~3000RPM |
C.W. & C.C.W. |
80mm x 80mm |
Gear Shaft |
4GB |
5:1~200:1 |
| 4RB50GB-C |
1PH, 220VAC |
50W |
150~3000RPM |
C.W. & C.C.W. |
80mm x 80mm |
Gear Shaft |
4GB |
5:1~200:1 |
| 5RB100A-A |
1PH, 110VAC |
100W |
150~3000RPM |
C.W. & C.C.W. |
90mm x 90mm |
Cylinder Shaft |
Worm Gearbox |
5:1~60:1 |
| 5RB100A-C |
1PH, 220VAC |
100W |
150~3000RPM |
C.W. & C.C.W. |
90mm x 90mm |
Cylinder Shaft |
Worm Gearbox |
5:1~60:1 |
| 5RB100GB-A |
1PH, 110VAC |
100W |
150~3000RPM |
C.W. & C.C.W. |
90mm x 90mm |
Gear Shaft |
5GB |
5:1~200:1 |
| 5RB100GB-C |
1PH, 220VAC |
100W |
150~3000RPM |
C.W. & C.C.W. |
90mm x 90mm |
Gear Shaft |
5GB |
5:1~200:1 |
| ADV900-30-A |
1PH, 110VAC |
30W, 1.0A |
150~3000RPM |
C.W. & C.C.W. |
none |
none |
none |
20:1 |
| ADV900-30-C |
1PH, 220VAC |
30W, 0.7A |
150~3000RPM |
C.W. & C.C.W. |
none |
none |
none |
20:1 |
| ADV900-50-A |
1PH, 110VAC |
50W, 1.5A |
150~3000RPM |
C.W. & C.C.W. |
none |
none |
none |
20:1 |
| ADV900-50-C |
1PH, 220VAC |
50W, 1.0A |
150~3000RPM |
C.W. & C.C.W. |
none |
none |
none |
20:1 |
| ADV900-100-A |
1PH, 110VAC |
100W, 4.0A |
150~3000RPM |
C.W. & C.C.W. |
none |
none |
none |
20:1 |
| ADV900-100-C |
1PH, 220VAC |
100W, 2.8A |
150~3000RPM |
C.W. & C.C.W. |
none |
none |
none |
20:1 |
|
Ordering information:
Minimum Order: Any quantities are acceptable.
- Reference Price: Depends
OEM/ODM Product
Branded Product
Buyer's Label Offered
- FOB: FOB Taiwan
